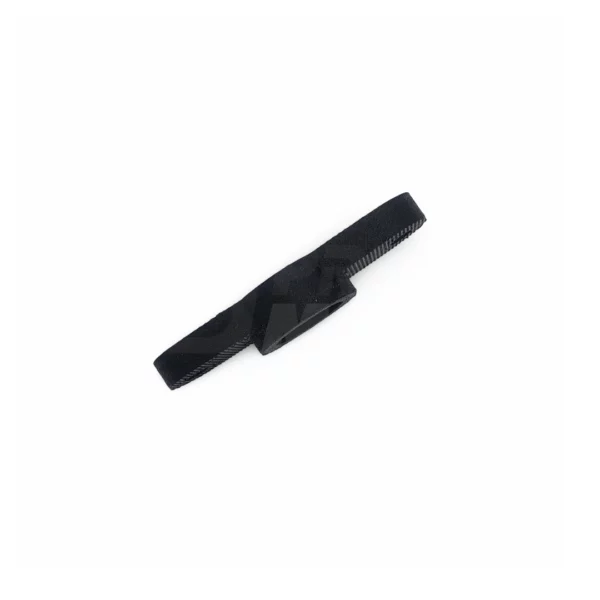

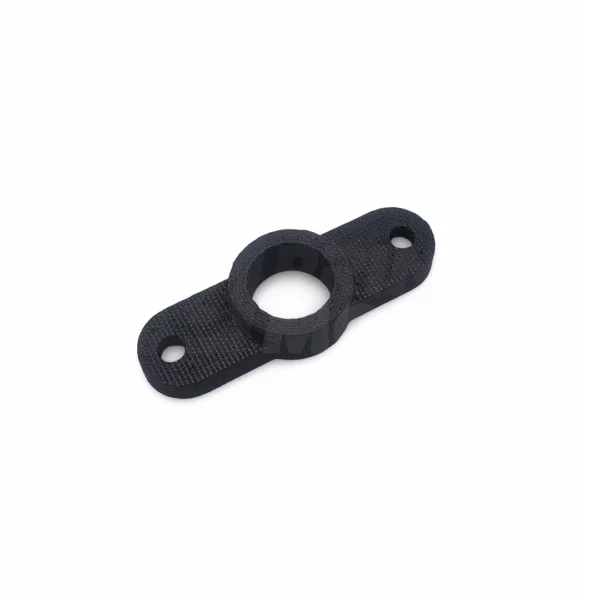

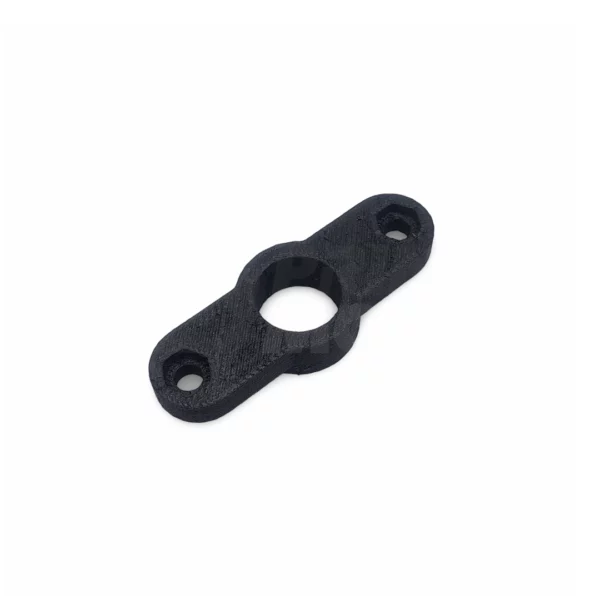

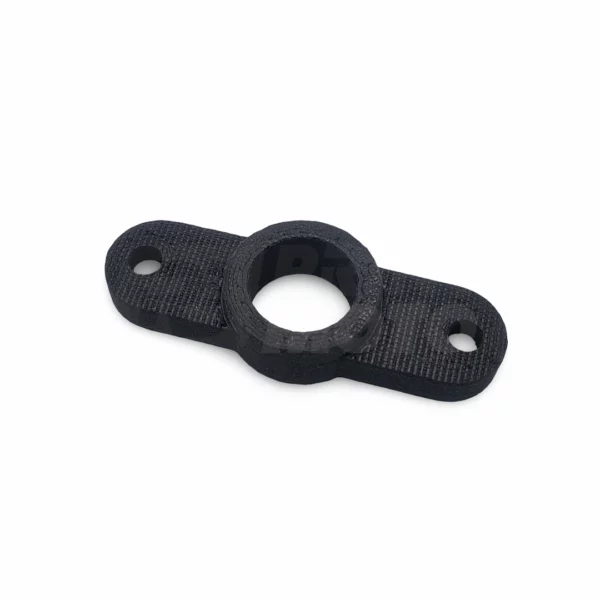

Fuel Tank Nut Retainer – KLR650 Gen 1

€ 19,95

Fuel Tank Nut Retainer – KLR650 Gen 1. Designed to solve the common issue of stripped and cross-threaded tank mounting holes inside the frame. The part slides into position from beneath the frame bracket to hold standard M8 hex nuts securely. Strip those too? Simply change them!

This item fits the Kawasaki KLR650 Gen 1 from 1987 to 2007. It is produced from carbon fiber reinforced nylon, a material chosen specifically for its high rigidity, strength under torque and chemical resistance to fuel.

Installation requires two standard M8 hex nuts (not included). Backed by the R3print Moto Lifetime Guarantee.

Worldwide Shipping
Easy Returns
Lifetime Guarantee
Secure Payments

Fix spinning or cross-threaded fuel tank mounting hardware without cutting, welding or tapping your frame.

On first-generation Kawasaki KLR650 models (1987–2007), the factory-captured nuts used to bolt down the rear of the fuel tank are highly prone to cross-threading, stripping out or breaking completely free from their internal frame welds. Once these hidden nuts begin to spin freely or lose their threads, tightening or removing the fuel tank bolts becomes impossible.

At R3print Moto, we produce this drop-in fuel tank nut retainer block. It allows you to completely bypass the broken factory hardware.

Simply remove or clear out the old stripped nuts, press two standard M8 hex nuts directly into the slots of this retainer and slide the assembly into place from the bottom of the frame bracket structure. The channels lock the new nuts securely in place, preventing them from spinning while you torque down your fuel tank mounting bolts from above. Even if you manage to strip the M8 hex nuts in the future, you can easily swap them out and drop fresh ones in.

Product Details
Make: Kawasaki
Model – Years
– KLR650 Gen 1 – 1987 to 2007
Partnumber: N/A
Schematic: View original placement on the last image.
Material: PAHT-CF (Carbon Fiber Reinforced Nylon) – chosen for its high rigidity, stiffness under torque and resistance to fuel, oil, moisture.
Color: Black
Surface Finish: Lightly textured, similar to the original plastic parts.
Production Method: Additive Manufacturing (3D Printing), using FDM (Fused Deposition Modeling) technology.

Please note: This is a replacement part manufactured by R3print Moto, specifically engineered for compatibility with Kawasaki motorcycles. It is an aftermarket component and not an original equipment manufacturer (OEM) part from Kawasaki.

Customization
We understand every build is unique. If you are looking for a personalized touch or a specific modification to this KLR650 fuel tank nut retainer, we can design a custom solution just for you. Get in touch to discuss your project.

Shipping & Availability
This R3print Moto part is made-to-order to ensure the highest quality and a perfect finish. Please allow a production time of 2 – 5 business days.
Shipping times depend on your location and are typically between 3 – 7 business days for Europe and 8 – 15 for UK & North America. Rest of the world 15+ business days.
You will receive a tracking number as soon as your order has shipped.

Returns & Warranty
We stand behind our re-engineered parts. All purchases from R3print Moto come with a Lifetime Guarantee.

Attribution
Original design credit is provided on our Attribution page.
