Air Filter Cage – DRZ400 | 13791-44E00
€ 14,95

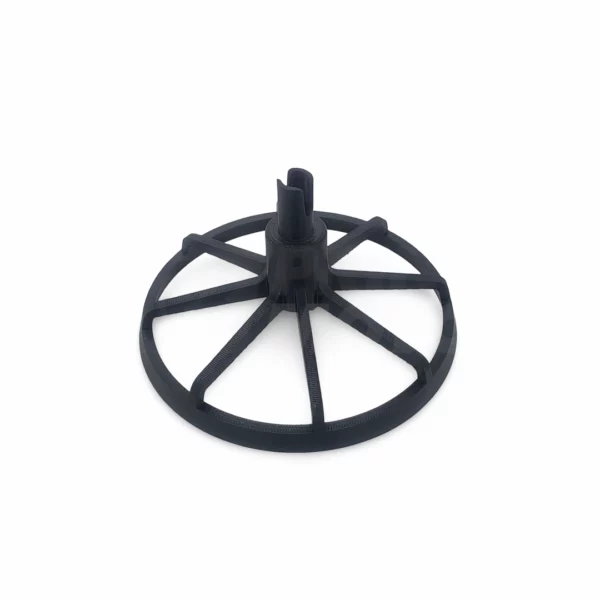

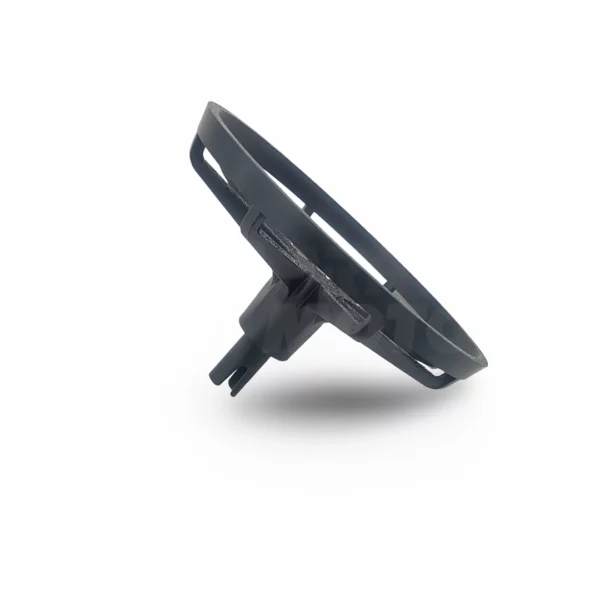

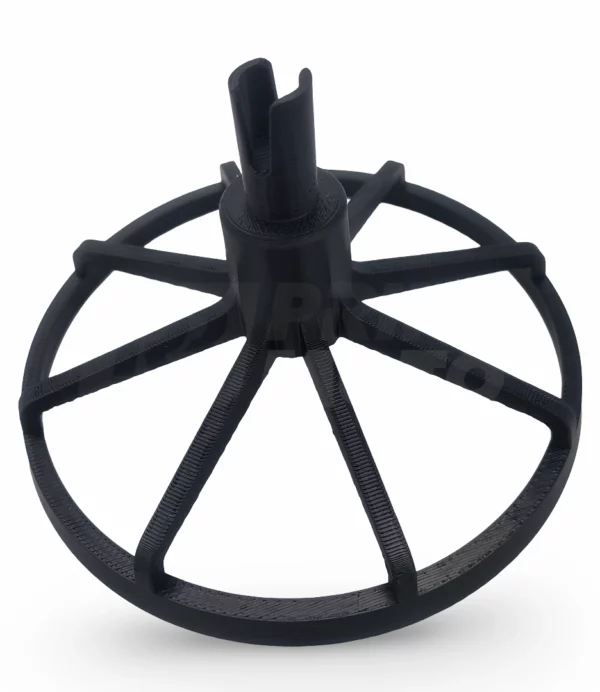

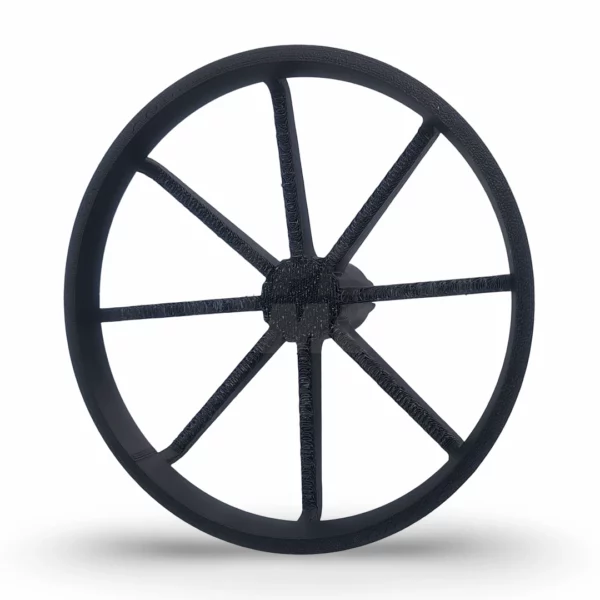

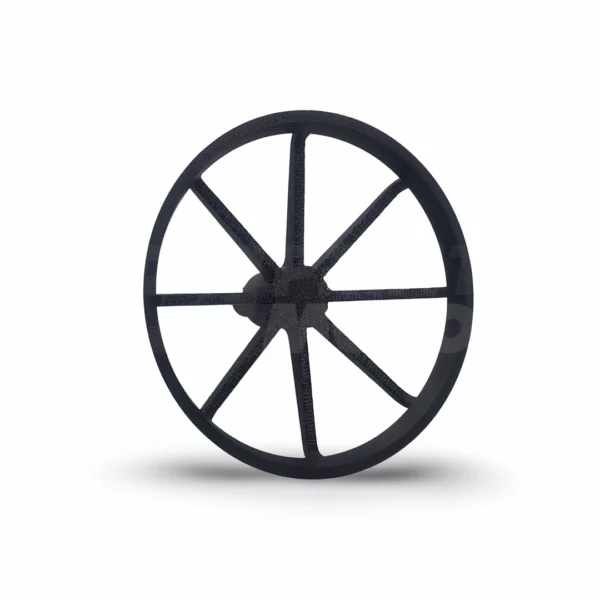

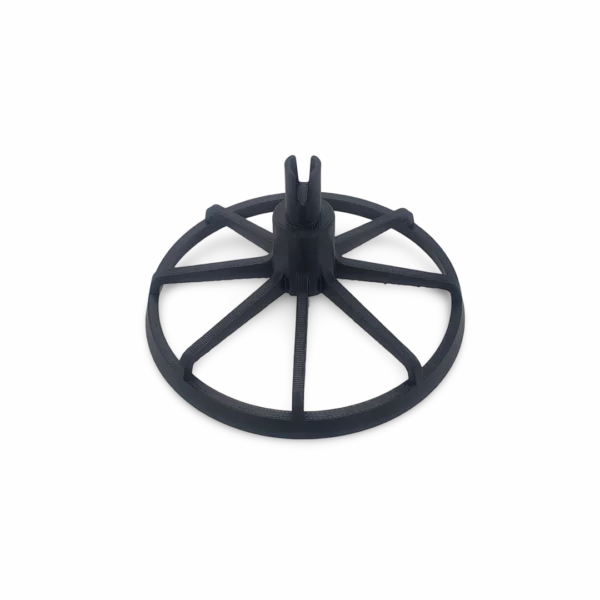

Air Filter Cage – DRZ400 | 13791-44E00 The original plastic internal air filter cage (13791-44E00) is the structural skeleton of your Suzuki’s intake. Over time, these plastic frames warp, the center guide pin cracks or the cage gets lost entirely during maintenance. Without a rigid, perfectly shaped holder, your foam filter will sag, lose its seal against the airbox wall, and allow dirty, unfiltered trail air to bypass directly into your engine.
Our reproduction is a precise, drop-in functional replica of the original holder. Produced from automotive-grade, chemical-resistant ASA polymer, it provides the perfect structure to keep your foam filter firmly pressed against its seating ring, even under heavy engine vacuum.
- Worldwide Shipping
- Easy Returns
- Lifetime Guarantee
- Secure Payments
If your DR-Z400 is suffering from a sagging air filter or if your original filter cage was lost or broken by a previous owner, finding a secure way forward is critical. Suzuki refers to this internal plastic skeleton as the “Holder, Filter” (factory part number 13791-44E00) and it is the only thing keeping your oiled foam air filter from collapsing in on itself under load. When this internal cage is warped, cracked, or missing, your foam filter cannot create a reliable, airtight seal against the mating ring of the main airbox housing. This allows dirty trail dust and sand to bypass the filter completely, putting your carburetor and top-end at immediate risk.
At R3print Moto, we focus on preserving classic dual-sport and off-road history by re-engineering the essential components that keep vintage machines out on the trail. Our replacement air filter holder is a precise 1:1 replica of Suzuki part number 1379144E00. It slides directly into your factory airbox providing the backing needed to keep your foam filter securely tensioned.
We manufacture these internal cages using an automotive-grade engineering polymer (ASA). We selected this material specifically because it will not warp under engine heat, degrade when constantly exposed to sticky foam filter oils, or weaken when cleaned with petroleum-based solvents.
Installation Tip: Apply a thin layer of waterproof rim grease to the sealing flange of your foam filter before sliding this holder inside and securing it to the airbox. This ensures a 100% dust-tight seal around the entire intake perimeter.
Product Details
Make: Suzuki
Model – Years
– DR-Z400 – 2001 to 2004
– DR-Z400E – 2000 to 2007
– DR-Z400S – 2000 to 2014
– DR-Z400SM – 2005 to 2014
Partnumber: 13791-44E00 | 1379144E00 | 13791 44E00
Schematic: View original placement on the Suzuki DRZ400 – CMSNL Parts Diagram.
Material: ASA (Acrylonitrile Styrene Acrylate). This material is chosen for its excellent resistance to UV, high temperatures (up to 95°C), and chemicals, making it the engineering standard for high-visibility, exterior motorcycle components.
Color: Black
Surface Finish: Lightly textured, similar to the original plastic parts.
Production Method: Additive Manufacturing (3D Printing), using FDM (Fused Deposition Modeling) technology.
Please note: This is a replacement part manufactured by R3print Moto, specifically engineered for compatibility with Suzuki motorcycles. It is an aftermarket component and not an original equipment manufacturer (OEM) part from Suzuki.
Customization
We understand every build is unique. If you are looking for a personalized touch or a specific modification to this DRZ400 airfilter support, we can design a custom solution just for you. Get in touch to discuss your project.
Shipping & Availability
This R3print Moto part is made-to-order to ensure the highest quality and a perfect finish. Please allow a production time of 2 – 5 business days.
Shipping times depend on your location and are typically between 3 – 7 business days for Europe and 8 – 15 for UK & North America. Rest of the world 15+ business days.
You will receive a tracking number as soon as your order has shipped.
Returns & Warranty
We stand behind our re-engineered parts. All purchases from R3print Moto come with a Lifetime Guarantee.
Attribution
Original design credit is provided on our Attribution page.
| Make | Suzuki |
|---|---|
| Partnumber | 13791-44E00 |
| Model | DR-Z400E, DR-Z400S, DR-Z400SM, DRZ400 |
